FRP Grating Mold
FRP grating mold is used for making different kinds of FRP(fiberglass reinforce plastic) molded frp gratings, commonly used size include mesh size 38*38mm, Height 25mm, Height 30mm, Height 38mm ,and also can make customized dimensions according to request.
Email ✉: cn@cnhbgrating.cn
Whatsapp:+0086-15350598856
GOOYI is Your Best Partner for Superior FRP Grating Mold Products

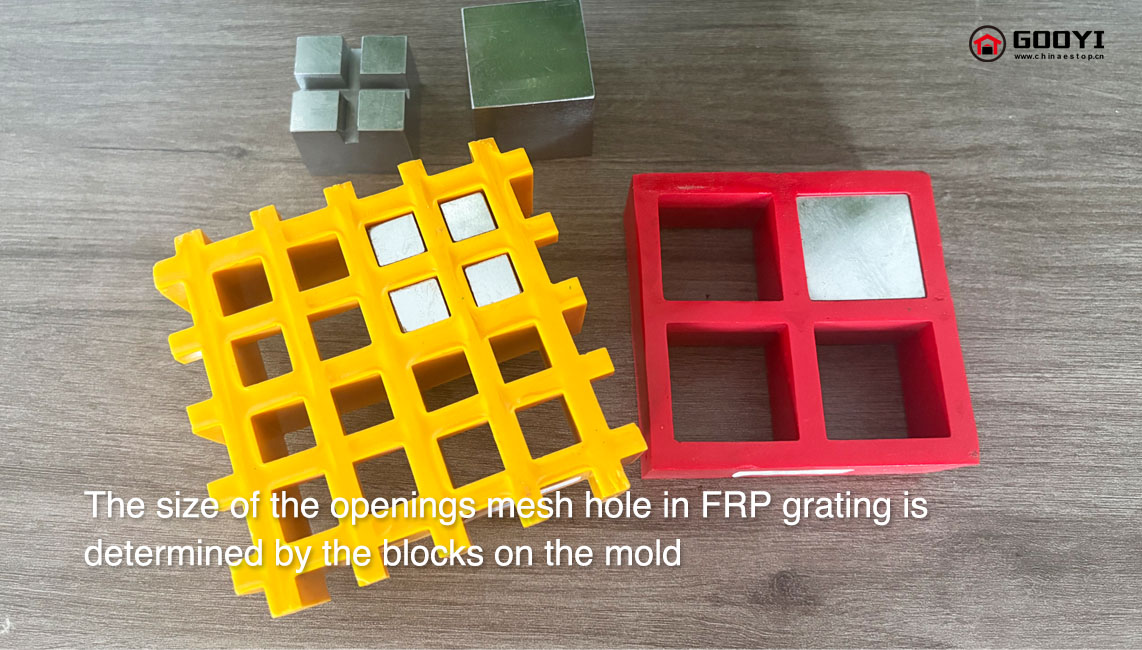

FRP grating production line main contains 3 parts: FRP grating mold, heating system, accessory equipment. Each grating mold include mold cavity and ejector pin de-molding system , The grating size can be adjusted by change the mold size. The important features are include easy operation , low maintenance, less weight( easy to transport and installation), high resistance capacity, so make it durable. The mold block made by S45C steel, and the top plate use material of S45C with thickness 14mm,and other support steel structure with steel grade Q235C, the block dimension tolerance will be control within +-0.1mm.
Main party of FRP grating mold
● Ejector pin
● Mould blocks
● Hydraulic Pump
● Copper water pipe
Auxiliary equipment of FRP molded grating production line:
- FRP Molded Grating Machine
- Resin Mixer Equipment
- Mixer tank
- Hydraulic pump
- Grinding machine
- Water-circulating pump
- Boiler
- Air source heating pump
- Cooling tower
We provide full set of frp grating machines together with technology of producing if required.
Standard mesh and panel sizes of frp gratings (molds sizes)
| No. | Mesh Size (mm) | Grating Panel Size LxWxH (mm) | Module (mm) |
| 1 | 38 x 38 | 1220 x 3660 x 38 | 38.5-41 |
| 2 | 38 x 38 | 1220 x 3660 x 30 | 30.5-32 |
| 3 | 38 x 38 | 1220 x 3660 x 25 | 25.5-27 |
| 4 | 50 x 50 | 1220 x 3660 x 50 | 50.5-52 |
| 5 | 38 x 38 | 1000 x 4038 x 38 | 38.5-41 |
| 6 | 38 x 38 | 1000 x 4038 x 25 | 25.5-27 |
Dimension of FRP Grating Mold
Mesh:
Size: 38*38mm、50*50mm、19mm*19mm
Mesh Height: 25mm、 30mm 、38mm、 50mm、 65mm
Panel (Width x Length)
1220*3660mm、1220*2440mm 、1220*4000mm 、1000*4000mm
Advantage of FRP grating mold
- High mechanical strength of joint
- High load bearing capacity
- Install easily
- Anti-corrosive long time
- Low maintenance cost
- Easy to maintenance
- Lest weight (3.5T-4.5T)
- Easy operation
- Labor request less
- Heat fast
Photo Reference
FRP Grating Mold 38x38X38
FRP grating mold mesh size 38x38X38 is the mostly selling size, panel size can be different according to customer request.
FRP Grating Mold 38x38x25
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FRP Grating Mold
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FRP Grating Mold
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FRP Grating Mold
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FRP Grating Mold
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FRP Grating Mold
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FRP Grating Mold
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FRP Grating Mold
FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.
FAQ
- Description of FRP grating machine?
- Normal size of FRP grating mold?
- What kind of raw material used for making FRP grating?
- What kind of accessories equipment need for FRP grating machine？
- What kind of heating equipment can use for FRP grating machine?
- How to install FRP grating machine?
- How is FRP grating made?
- How to maintenance FRP grating mold?
- Why need heating and cooling systems for FRP grating machine?
- How many size of FRP grating can produce with one FRP grating mold?
- How many pieces of FRP grating mold can put into 1x40ft containers?
- Where to buy FRP grating machine?
- How to buy FRP grating machine?
- How to polish the FRP grating surface?
- What kind of filler can use for making FRP grating?
- Normal type of FRP grating surface?
- FRP grating clips accessories type?
