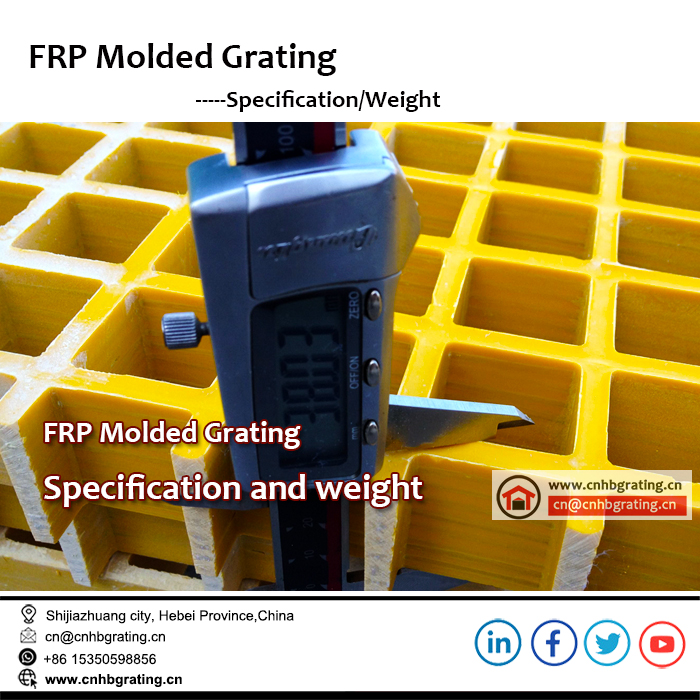

| No | Thickness (mm) | Mesh Size(mm) | Rib size (mm) | Panel Size (mm) | Open Area(%) | Weight (kg/m2) |
| 1 | 13 | 38×38 | 5.8/5.0 | 1220×4000 | 78% | 6.0 |
| 2 | 20 | 38×38 | 6.0/5.0 | 1220×4000 | 65% | 9.8 |
| 3 | 25 | 38×38 | 6.4/5.0 | 1220×4000 | 68% | 12.3 |
| 4 | 30 | 38×38 | 6.5/5.0 | 1220×4000 | 68% | 14.6 |
| 5 | 30 | 38×38 | 10.5/9.0 | 1220×3660 | 58% | 25.0 |
| 6 | 38 | 38×38 | 7.0/5.0 | 1220×4000 | 68% | 19.5 |
| 7 | 50 | 38×38 | 11.0/9.0 | 1220×4000 | 56% | 42.0 |
| 8 | 60 | 38×38 | 11.5/9.0 | 1220×4000 | 54% | 50.4 |
| 9 | 25 | 40×40 | 6.4/5.0 | 1247×4047 | 67% | 12.0 |
| 10 | 30 | 40×40 | 6.5/5.0 | 1247×4047 | 67% | 14.5 |
| 11 | 40 | 40×40 | 7.0/5.0 | 1247×4047 | 67% | 19.2 |
| 12 | 13 | 50×50 | 7.0/6.0 | 1220×3660 | 82% | 5.8 |
| 13 | 25 | 50×50 | 7.0/6.0 | 1220×3660 | 80% | 11.7 |
| 14 | 50 | 50×50 | 8.0/6.0 | 1524×4000 | 78% | 23.7 |
| 15 | 40 | 83×83 | 7.0/5.0 | 1007×3007 | 84% | 9.5 |
10 Advantage of FRP Gratings.
- Lightweight, high impact
- Corrosion resistantto chemicals
- Impact resistant
- Non Conductive
- Non-magnetic and insulation
- Low thermal conductivity
- Low maintenance / installation cost
- Fire resistant
- Slip and age-resistant
- Excellent load capacity
