Buyer's guide for FRP grating machine?

When you want to purchase FRP grating machine, when ask a quoation from supplier, there are some information we should to learn about this machine, today let’s see what should we know?

Details should to know before buy FRP grating machine?

Before you buy this machine, firstly, you should know what size of FRP grating you want to produce, each FRP mold can produce only one size(mesh&panel)

● Mesh size:

Normal size are 38*38mm/50*50mm

● Mesh Height:

Normal size are 25mm/ 30mm/38mm/50mm/ 65mm

● Panel size(Width x Length):

Normal size are 1220*3660mm/1220*2440mm /1220*4000mm /1000*4000mm

We also provide customized dimension of FRP grating mold to meet all customer’s requirements.

Only need FRP grating mold or with full set of auxiliary equipment?

Because some of auxiliary equipment can be match lot set of FRP grating mold, so if it is the first time you set up FRP grating factory, then you need to purchase full set of FRP grating machine with auxiliary equipment, if you are not new producer, and has factory now, maybe you only need to add some size FRP mold or any of the auxiliary equipment.

Auxiliary equipment name of FRP molded grating machine

FRP Molded Grating Making Machine China — FRP Grating Mold

FRP Grating Grinding Machine China — Grinding Machine China

FRP grating machine introduction

Introduction

Before buy frp grating machine, learn about it.

FRP grating machine is used for making different kinds of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 ,and also can make customized dimensions according to request.

It main contains 3 parts: grating mold, heating system, accessory equipment. Each grating mold include mold cavity and ejector pin de-molding system , The grating size can be adjusted by change the mold size.

The important features are include easy operation , low maintenance, less weight( easy to transport and installation), high resistance capacity, so make it durable.

The mold block made by S45C steel, and the top plate use material of S45C with thickness 14mm,and other support steel structure with steel grade Q235C, the block dimension tolerance will be control within +-0.1mm.

Grating mold details

The mold is small metal which made by S45C steel, and adopt chromium plating method. As a important part of the machine, it has advantage of smooth surface, high hardness an lone serve life.

Heating system details

It has water cycle heating and water cycle cooling system, FRP grating use thermosetting resin, the resin become solidified with the temperature increase.

Key component of FRP grating mold

Ejector pin
Mould blocks
Hydraulic Pump
Copper water pipe

Advantage of FRP grating machine

High mechanical strength of joint
High load bearing capacity
Install easily
Anti-corrosive long time
Low maintenance cost
Easy to maintenance
Lest weight (3.5T-4.5T)
Easy operation
Labor request less
Heat fast

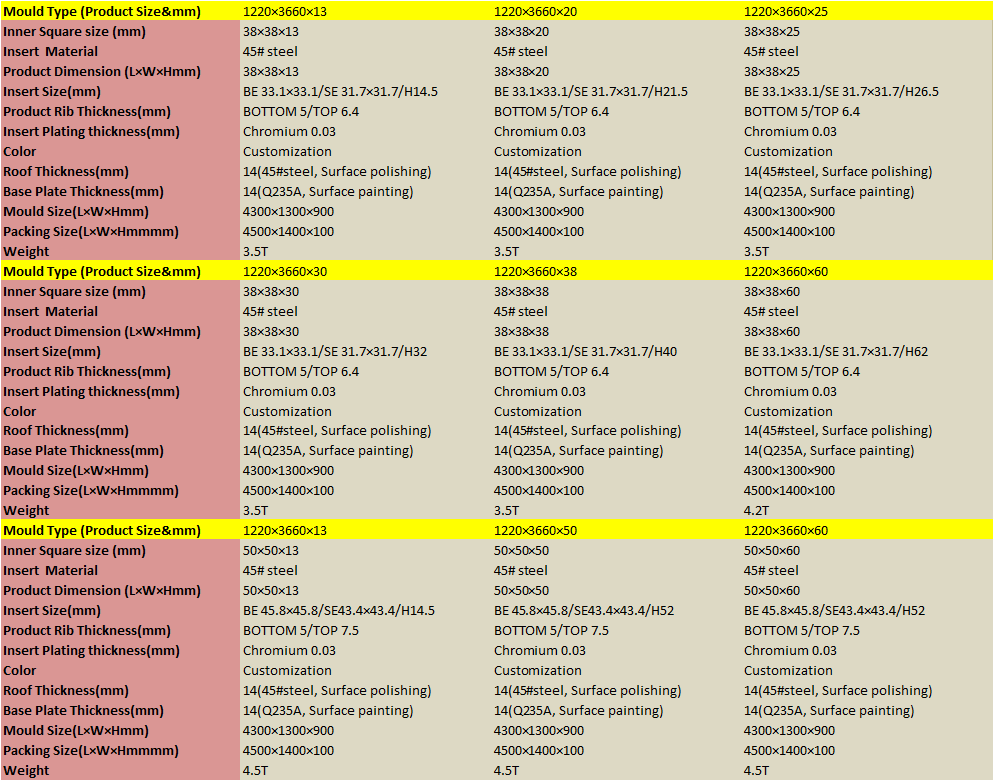

Most sell grating mold size and specification

（buy FRP grating machine）

Characteristics of molded of FRP grating machine

Ejector rod lifting device is two cylinder to parallel advance, smooth, no waving.
Stripping plate and stripping beam adopt elasticity connection, go up and down is parallel and steady.
The module using delicate S45C steel, grinding, polishing and the surface is plating.It has antiseptic function,smooth and easy to demould.
Ejector rod can go up and down along with lifting device, easy to change and easy maintenance.
Ejector rod is made from steel parts grinding, surface smooth, firmness and wear resistance.
Hydraulic station adopt hydraulic parts made by Sino-Japanese joint venture, it is long-life and durable
Mould temperature rise and drop are achieved by rectangular copper pipe, which have large contact area with template, temperature rise and drop fast, and it can heat the mould top surface. In terms of the four borders of the mould,it is anti-corrosion and durable.Joint adopt stainless soft joint,joint destuffing is convenience,anti-corrosion and durable.
hot and cold water injection use high-powered water pump ,pipe connections in parallel,so the heating and cooling speed are both fast.
there is protective equipment on the mould to avoid the resin leakage.
The mould adpot the screw on the bottom to lockup,it is easy to adjust and change.

FRP Grating Mold 38x38 — FRP Grating Mold 38×38

How to buy this machine from us?

Firstly, you need to send us all complete information then get a quotation. Information include below:

Dimension details of the machine you want to purchase, such as FRP grating mesh size, panel size you want to produce.
Mark if you need all auxiliary equipment of the machine.
Mark the quantity that you need.
Mark you need FOB or C&F price, if need C&F, please provide the destination port name.

Secondly,we send you quotation list according to confirmed details information.

Thirdly, after you accept price, we can sign a sales contract, then you make down payment.

The fourth, we arrange production – delivery goods- customer receive and install

Incoterms (Price Terms)You Should Know

Before commencing with global buying and shipping in large orders, we recommend you to get acquainted with Incoterms (International Commerce Terms). Simply put, these are rules set by the International Chamber of Commerce (ICC), involving certain selling terms used globally. These are the terms agreed upon by both buyers and sellers during any international transactions.

The Incoterm you agree upon will determine whether you or your seller are legally subjected to certain costs and risks when your goods are in transit. There are several different Incoterms, but usually being familiar with the following four is enough for China imports:

EXW – Ex-Works or Ex-Warehouse

Shipping under EXW makes it the supplier’s responsibility only to get the goods ready for dispatch. From then on, the freight forwarder is responsible for receiving the assets and make sure they are cleared, loaded onto the cargo vessel, and delivered to their final destination.

FOB – Free on Board

With FOB, the supplier has to get your goods aboard the vessel. Once the goods are loaded, the supplier is no more responsible for them. The freight forwarder should handle them thereupon, until delivery.

CIF – Cost, Insurance, and Freight

When shipping under CIF, the seller loads the goods on the vessel, upon which the risk of any loss or damage passes, just like in FOB. Additionally, in CIF, the seller covers all freight costs until the goods arrive at your destination port. The seller also has to insure the goods to cover the risk of damage during carriage.

Shipping Methods We Can Choose（buy FRP grating machine）

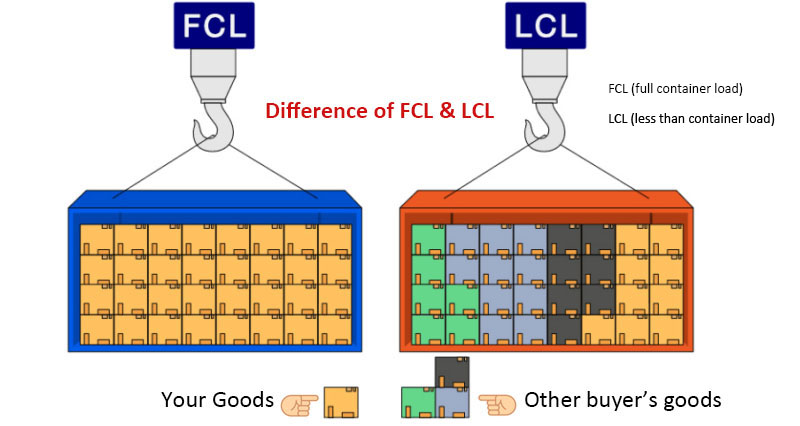

Shipping by sea (Full containers)

It is the best solution, but the quantity is need to full of one container (Volume more than 28m³ or Weight more than 25tons)

Shipping by sea (Less than containers)

If the quantity is less than 1 containers, and both volume and weight is less, then we can consider LCL loading, so can reduce the shipping cost.

Shipping by sea (Bulk vessel)

When the machine width, height or length is more bigger than container size, then can not put into container, when this situation coming, we should consider bulk vessel. But bulk vessel has a disadvantage, departure time always delay.

Hope this article of FRP Grating Machine Buyer Guide will help you when you buy FRP grating machine .
