ASTM E84 – FRP Grating Fire Test Standard
ASTM E84, titled “Standard Test Method for Surface Burning Characteristics of Building Materials,” is a widely recognized fire test standard used to evaluate the surface burning characteristics of building materials, including FRP (Fiberglass Reinforced Plastic) grating. Below is an overview of how this standard applies to FRP grating and its significance:
What is ASTM E84?
ASTM E84 measures the flame spread and smoke density of materials when exposed to fire under controlled conditions. The test provides two key metrics:
- Flame Spread Index (FSI): Indicates how quickly flames travel across the material’s surface.
- Smoke Developed Index (SDI): Measures the amount of smoke produced during combustion.
The results are classified into categories based on their performance:
- Class A (or Class 1): FSI ≤ 25, SDI ≤ 450
- Class B: FSI between 26–75, SDI ≤ 450
- Class C: FSI between 76–200, SDI ≤ 450
Materials with Class A ratings are considered the most fire-resistant.
How Does ASTM E84 Apply to FRP Grating?
FRP gratings are often subjected to ASTM E84 testing because they are commonly used in industrial and commercial environments where fire safety is critical. The test ensures that the grating meets specific fire safety standards, especially in areas like:
- Chemical plants
- Oil rigs
- Wastewater treatment facilities
- Public buildings
Test Procedure
- Sample Preparation: A sample of the FRP grating is cut to fit the dimensions specified by the ASTM E84 protocol (typically 24 inches wide and 10 feet long).
- Tunnel Test Setup: The sample is placed on the ceiling of a specially designed tunnel furnace.
- Exposure to Flame: A gas flame is applied at one end of the tunnel for a set period (usually 10 minutes).
- Measurement: Instruments measure the rate of flame spread and the amount of smoke generated.
Significance of ASTM E84 Results
- Safety Assurance: Compliance with ASTM E84 ensures that FRP gratings perform safely in case of a fire.
- Regulatory Compliance: Many industries require materials to meet specific ASTM E84 classifications to comply with building codes and regulations.
- Customer Confidence: Products certified under ASTM E84 provide reassurance to customers about their safety and reliability.
Challenges with FRP Gratings
While FRP gratings offer excellent corrosion resistance and durability, they can be flammable depending on their resin formulation. To improve their fire resistance:
- Fire-Retardant Resins: Manufacturers often use fire-retardant resins during production to enhance the material’s ability to meet or exceed ASTM E84 requirements.
- Additives: Flame-retardant additives may also be incorporated to reduce flammability.
Conclusion
ASTM E84 is a critical benchmark for evaluating the fire performance of FRP gratings. By ensuring compliance with this standard, manufacturers can produce safer products that meet industry demands and regulatory requirements. For businesses and consumers alike, choosing FRP gratings tested and certified under ASTM E84 guarantees enhanced safety and peace of mind in fire-prone environments.

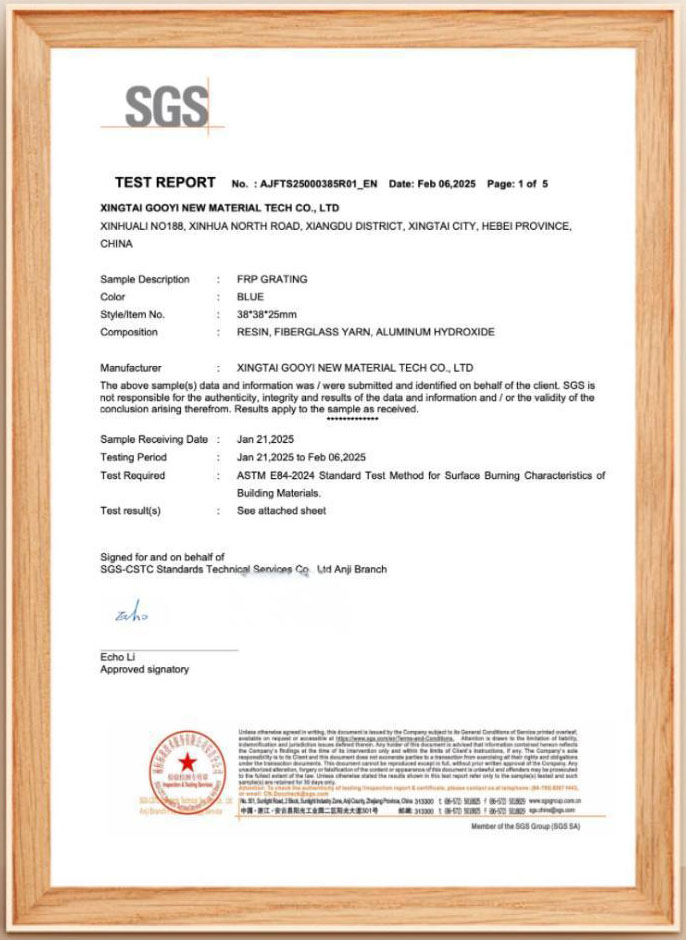

Our Certificate of ASTM E84
